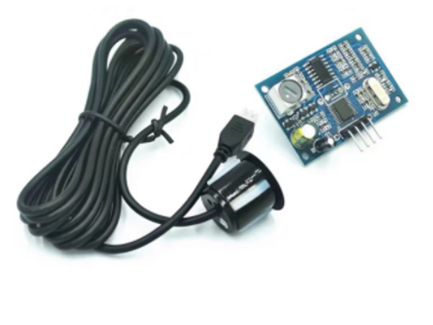

Waterproof Ultrasonic Ranging Module Distance Measuring Transducer Sensor JSN-SR04T 3.0 JSN-SR04T with cable
Description:
1. Weight：50g
2. Electrical parameters: JSN-SR04T
3. Operating voltage: DC 5V
4. Quiescent current: 5mA
5. Total current work: 30mA
6. Acoustic emission frequency: 40khz
7. Farthest distance: 4.5m
8. Blind: 25cm
9. Wiring: + 5V (positive power supply)
10.Trig (control side) RX
11. Echo (the receiver) TX
12.GND (negative)
13.Module size: 41mm * 28.5mm
14.Resolution: about 0.5cm
15.Angle: less than 50 degrees
16.Working temperature: -10 ~ 70 °
17.Storage temperature: -20 ~ 80 °
